Appliion:Excavator

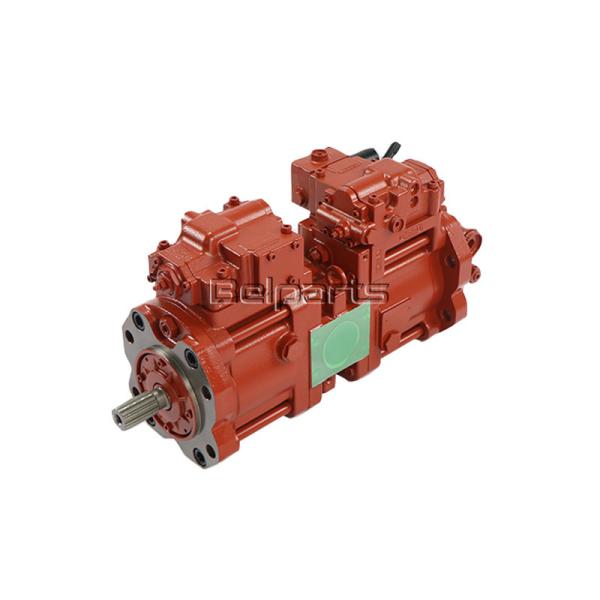

Part name:hydarulic pump
Part number:31N3-10050 31EA-00200
Model:R110 R130 R150-5-7
MOQ:1PC
Material:Steel
Payment term:T/T, Western union, paypal, trade assurance or as required
Weight:190KG
Brand:Belparts
| Appliion | Excavator |
| Part name | hydarulic pump |
| Part number | 31N3-10050 31EA-00200 |
| Model | R110 R130 R150-5-7 |
| MOQ | 1PC |
| Material | Steel |
| Payment term | T/T, Western union, paypal, trade assurance or as required |
| Weight | 190KG |
| Brand | Belparts |

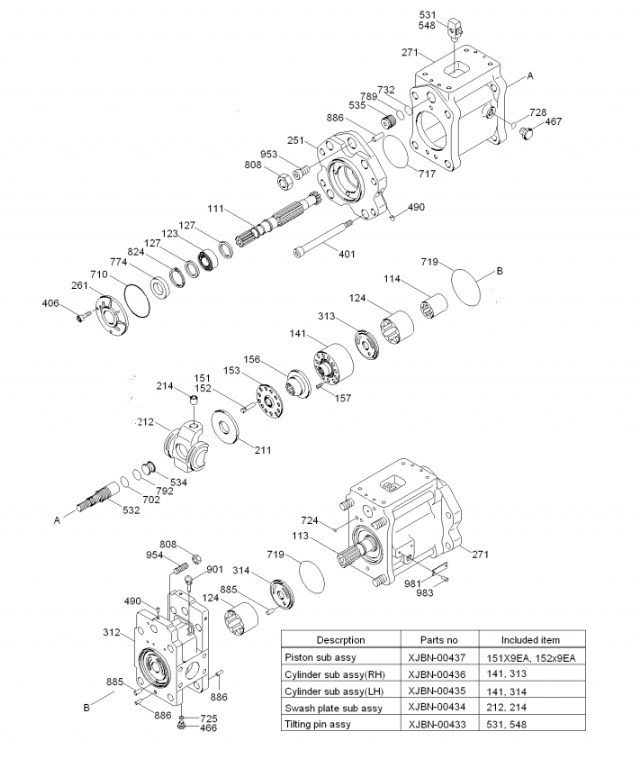

| # | Part No | Part Name | Qty. | Price request |
| * | 31N3-10050 | MAIN PUMP | 1 | |
| *-1 | XJBN-00928 | MAIN PUMP UNIT | 1 | |
| 111 | XJBN-00432 | SHAFT(F)-DRIVE | 1 | |
| 113 | XJBN-00431 | SHAFT(R)-DRIVE | 1 | |
| 114 | XJBN-00430 | COUPLING-SPLINE | 1 | |
| 123 | XJBN-00429 | BEARING-ROLLER | 2 | |
| 124 | XJBN-00428 | BEARING-NEEDLE | 2 | |
| 127 | XJBN-00427 | SPACER-BEARING | 4 | |
| S141 | XJBN-00426 | BLOCK-CYLINDER | 2 | |
| S151 | XJBN-00425 | PISTON | 18 | |
| S152 | XJBN-00424 | SHOE | 18 | |
| 153 | XJBN-00423 | PLATE-SET | 2 | |
| 156 | XJBN-00422 | BUSHING-SPHERICAL | 2 | |
| 157 | XJBN-00421 | SPRING-CYLINDER | 18 | |
| 211 | XJBN-00420 | PLATE-SHOE | 2 | |
| S212 | XJBN-00419 | PLATE-SWASH | 2 | |
| S214 | XJBN-00418 | BUSHING-TILTING | 2 | |
| 251 | XJBN-00417 | SUPPORT | 2 | |
| 261 | XJBN-00416 | COVER(F)-SEAL | 1 | |
| 271 | XJBN-00415 | CASING-PUMP | 2 | |
| 312 | XJBN-00414 | BLOCK-VALVE | 1 | |
| S313 | XJBN-00413 | PLATE(R)-VALVE | 1 | |
| S314 | XJBN-00412 | PLATE(L)-VALVE | 1 | |
| 401 | XJBN-00411 | SCREW | 8 | |
| 406 | XJBN-00410 | SCREW | 4 | |
| 466 | XJBN-00356 | PLUG | 2 | |
| 467 | XJBN-00409 | PLUG | 4 | |
| 490 | XJBN-00032 | PLUG | 15 | |
| S531 | XJBN-00408 | PIN-TILTING | 2 | |
| 532 | XJBN-00407 | PISTON-SERVO | 2 | |
| 534 | XJBN-00406 | STOPPER(L) | 2 | |
| 535 | XJBN-00405 | STOPPER(S) | 2 | |
| S548 | XJBN-00404 | PIN-FEED BACK | 2 | |
| 702 | XJBN-00403 | O-RING | 2 | |
| 710 | XJBN-00402 | O-RING | 1 | |
| 717 | XJBN-00401 | O-RING | 2 | |
| 719 | XJBN-00400 | O-RING | 2 | |
| 724 | XJBN-00361 | O-RING | 18 | |
| 725 | XJBN-00362 | O-RING | 2 | |
| 728 | XJBN-00097 | O-RING | 4 | |
| 732 | XJBN-00879 | O-RING | 2 | |
| 774 | XJBN-00399 | SEAL-OIL | 1 | |
| 789 | XJBN-00398 | RING-BACK UP | 2 | |
| 792 | XJBN-00397 | RING-BACK UP | 2 | |
| 808 | XJBN-00396 | NUT-HEX | 4 | |
| 824 | XJBN-00395 | RING-SNAP | 2 | |
| 885 | XJBN-00394 | PIN-VALVE PLATE | 2 | |
| 886 | XJBN-00365 | PIN-SPRING | 4 | |
| 901 | XJBN-00393 | BOLT-EYE | 2 | |
| 953 | XJBN-00105 | SCREW-SET | 2 | |
| 954 | XJBN-00392 | SCREW-SET | 2 | |
| 981 | XJBN-00391 | NAME PLATE | 2 | |
| 983 | XJBN-00341 | PIN | 2 | |
| *-2 | @ | FUEL INJECTION PIPE & NOZZLE
SEE 4020, FRONT | 1 | |
| *-2 | @ | FUEL INJECTION PIPE & NOZZLE
SEE 4020, REAR | 1 | |
| *-3 | @ | FUEL INJECTION PIPE & NOZZLE
SEE 4030 | 1 | |
| 011 | XJBN-00437 | PISTON SUB ASSY
SEE ILLUST | 1 | |
| 013 | XJBN-00436 | CYLINDER ASSY-RH
SEE ILLUST | 1 | |
| 014 | XJBN-00435 | CYLINDER ASSY-LH
SEE ILLUST | 1 | |
| 030 | XJBN-00434 | SWASH PLATE ASSY
SEE ILLUST | 1 | |
| 530 | XJBN-00433 | TILTING PIN ASSY
SEE ILLUST | 1 | |
